RA2076

RA2076

RAKES

MSRP AS LOW AS

$0.00

Extended Warranty

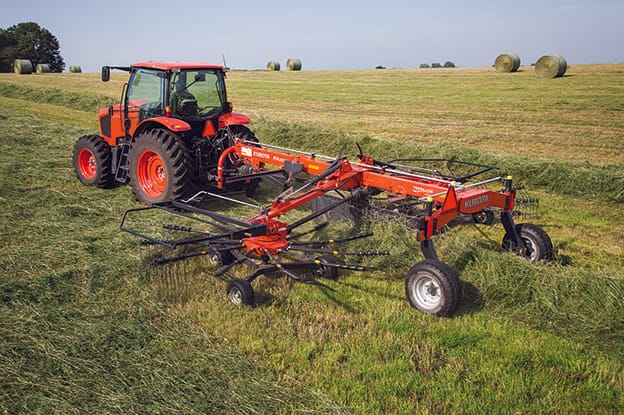

Maneuver in tight fields and work consistent windrows with the Kubota RA2076! The Kubota FarmLine rake sports oil-immersed cam discs and guide rollers for reduced maintenance, and with up to 12 tangential tine arms, and four double tines per arm, you’re going to be covering larger swaths for faster dry times. The RA2076 sports a 23’ to 25’ 7” working width and thanks to rear wheel steering, you’ll easily make turns up to 80 degrees, maximizing your performance.

Build

My Equipment

Download

Specifications

Compare

Specifications

Special Offers

  • Implement Stand Alone Financing

    Stand Alone Financing Installment Program

    Implement Stand Alone Financing
  • Farmer Veteran Coalition Rebate

    Customer instant rebate for Farmer Veteran Coalition members.

    Farmer Veteran Coalition Rebate
  • RAKE SERIES

    Up to 0% A.P.R. for 48 Months on your new Kubota RA Series!

    RAKE SERIES
Easy Transportation

Easy Transportation

To reduce transport height on the Kubota RA2076 and RA2584 to 11'4", the tine arms can be removed. The swath board folds up automatically, creating a transport width of 9'2" for all 3 models.

RA2076

RA2076

HP

MSRP AS LOW AS

$0.00

Specifications

Capacity Theo. ( Acres/h)

20.8

Carrier Arm Compensating

N/A

Continuous Cam Track

N/A

Detachable Tine Arms

Standard

Farm Line

Standard

Fixed Tandem Axle

Optional

Gauge Wheel 16"

N/A

Height Adjustment

Mechanical

Linkage Drawbar

N/A

Locking Catch For Slopes

N/A

Lower Links (2-pt.)

Standard

Number Of Arms Per Rotor

2x12

Number Of Double Tines/ Arm

4

Number Of Rotors

2

Parking Height Ft.

11' 4" (3.5)

Pivoting 3-pt Headstock (cat.)

N/A

Pivoting Tandem Axle

N/A

Pro Line

N/A

Road Lights

Standard

Rotor Diameter Ft.

11' (3.4)

Stand. Tires ( Carrying Frame)

10/75-15.3

Swath Delivery

Center

Swath Width M.

4' 3" - 7' 3"

Tine Diameter In.

.35"

Tires ( Rotors)

16x6.5-8

Transport Length Ft. (m)

19' 4" (5.9)

Transport Width Ft. (m)

9' 2" (2.8)

Warning Panels

Standard

Weight Lbs. (kg)

3615 (1639)

Working Width Ft. (m)

23' (3) - 25' 7" (7.8)
